Pigging System
| Lieu d'origine | Pékin, Chine |
|---|---|
| Nom de marque | Beijing VP Co., Ltd |
| Certification | ISO Certificate; 3A Certificate |
| Numéro de modèle | Adapté aux besoins du client selon la demande |
| Quantité de commande min | 1 |
| Conditions de paiement | T/T |
Contactez-moi pour des aperçus gratuits et des bons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
| Système de finition élevé de Pigging de tuyau | taille 1,5" ~8" | Taille standard de madrague | 8" et en haut |
|---|---|---|---|
| Couleur | Adapté aux besoins du client par des utilisateurs | Contamination croisée | 0 |
| Nom | Système de Pigging de canalisation | Matériel | Adapté aux besoins du client par des utilisateurs |
| Mettre en évidence | 3A Liquid Pipeline Pigging Systems,Sanitary HPS Pigging Solution,HPS Pipeline Pigging Systems |
||
Description de produit
BJVP has over 2 decades of experience in delivering product recovery and sanitary pigging solutions to companies that process liquids. VP Pigging System is designed to thoroughly clean up the residue liquids in pipeline. The pigging system includes pig launcher, pig receiver, middle station, pig, etc. BJVP Pig is designed by BJVP and made the world most advanced PU technology in France. We developed various material to fit for the right application. The lip seal is separated with the pig body. Lower cost for the maintenance. BJVP pigging systems recover lost product, eliminate flush waste, minimize consumer of solvent for cleaning the pipeline, and result in consistently higher product quality. Our Pigging system will give you a rapid payback, ongoing return on investment, a clear increase in profitability and improved sustainability.
Characteristics:
The following functions can be realized through Pigging:
- Increase yields
- Reduce flush waste
- Save Time
- Reduce Contamination Risks, free of residual
- Changeable lips of pig can minimize the cost of consumer.
- Simplified pipe networks and reduced space.
Parameters:
| Product Category |
Launcher Receiver Pig Stop T-way valve Three-way distribution valve 5D elbows Pig Pigging line Electric cabinet Control System |
| Pipe Size | 1.5”~12” |
| Pressure Standard | ANSI 150# |
| Liquid Temperature | -52～380℃ |
| Liquid Viscosity | 0.1～440,000 cst |
| Material | WCB,CF8,CF8M,Alloy |
| Port Type | ASME B16.5 RF |

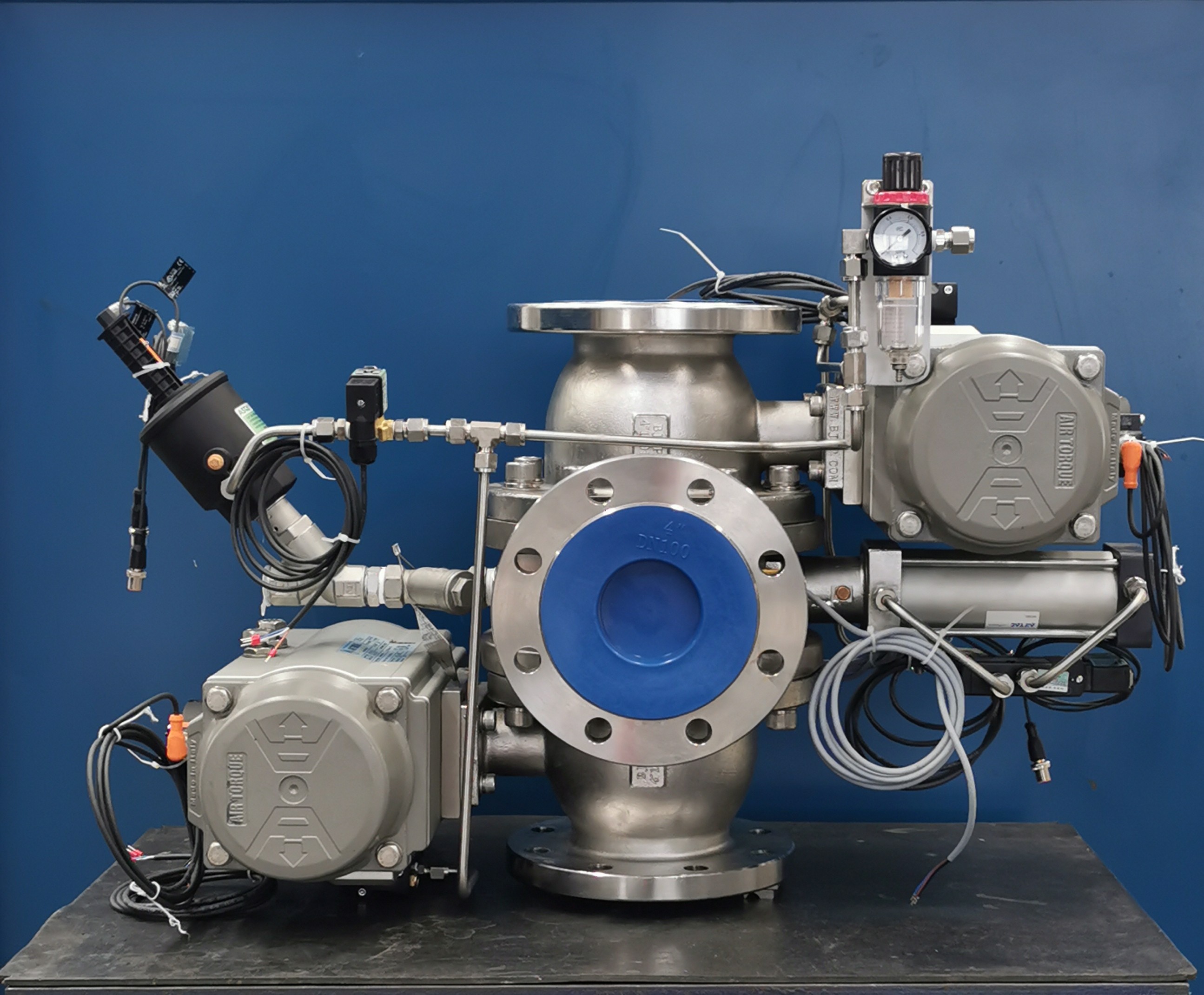

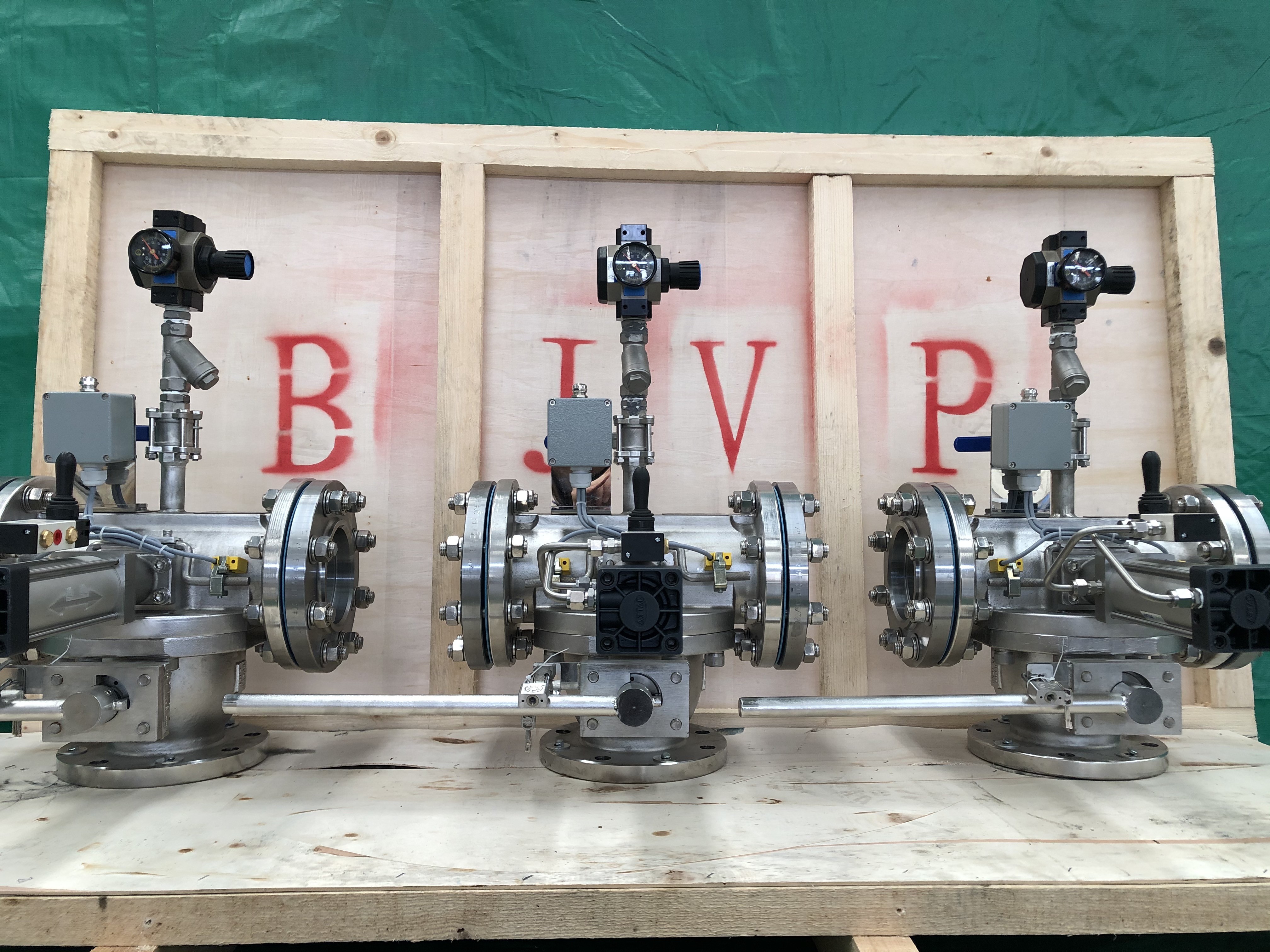

Pictures:
Markets & Applications:
- Chemical product
- Sanitary grade materials and connections
- Pier location product
- Manual & automatic control
- Pigging relevant accessories.
F&Q:
Q1: What can pigging system do in pipeline?
A: BJVP Pigging System can use the pig to clean the pipe line. There is no redidue and contamination between the different kind of liquid sharing the same pipe.
Q2: What is pigging equipment?
A: BJVP pigging equipment includes items such as high finishing pipe Pigging System, pig launcher/ receiver, middle station, pig detectors, pig, etc.
Q3: Where can this pigging system be used?
A: BJVP pigging equipment can be widely used in Lubricants and greases, paints and varnishes, special chemicals, perfumes and other industry applications.
Q4: How do pigs clean the pipelines?
A: Pig is pushed by forced air from the launcher to receiver, so the product and any residues in pipeline will be pushed out of the pipeline by pig.
